  • 01. Duration Height > H**
  • 02. **Method:** The particle takes $1$ second to reach height $H$ on the way up. By symmetry, it will take another $1$ second to fall from height $H$ back to the ground. We subtract these "tails" from the total flight time.
  • 04. $$
  • 05. \begin{aligned}
  • 06. \text{Required Time} &= \text{Total Flight Time} - (2 \times 1) \\
  • 07. &= \frac{24}{7} - 2 \\
  • 08. &= \frac{24}{7} - \frac{14}{7} \\
  • 09. \end{aligned}
  • 010. $$
  • 012. $$
  • 013. \boxed{\Delta t = \frac{10}{7} \text{ s} \quad (\approx 1.43 \text{ s})}
  • 014. $$

Key Revision Points

  • Duration Height > H**
  • **Method:** The particle takes $1$ second to reach height $H$ on the way up. By symmetry, it will take another $1$ second to fall from height $H$ back to the ground. We subtract these "tails" from the total flight time.
  • $$
  • \begin{aligned}
  • \text{Required Time} &= \text{Total Flight Time} - (2 \times 1) \\
  • &= \frac{24}{7} - 2 \\
  • &= \frac{24}{7} - \frac{14}{7} \\
  • \end{aligned}
  • $$
  • $$
  • \boxed{\Delta t = \frac{10}{7} \text{ s} \quad (\approx 1.43 \text{ s})}
  • $$

Foundation Questions

Question 1: Conditional Probability (Year 2)

Tisam is playing a game.

She uses a ball, a cup and a spinner.

The random variable $X$ represents the number the spinner lands on when it is spun.

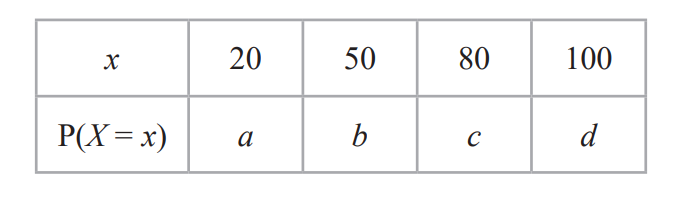

The probability distribution of $X$ is given in the following table

where $a$, $b$, $c$ and $d$ are probabilities.

To play the game

  • the spinner is spun to obtain a value of $x$

  • Tisam then stands $x\text{ cm}$ from the cup and tries to throw the ball into the cup

The event $S$ represents the event that Tisam successfully throws the ball into the cup.

To model this game Tisam assumes that

  • $\text{P}(S \mid \{X = x\}) = \frac{k}{x}$ where $k$ is a constant

  • $\text{P}(S \cap \{X = x\})$ should be the same whatever value of $x$ is obtained from the spinner

Using Tisam’s model,

Conditional Probability (Year 2) diagram 1
(a)
show that $c = \frac{8}{5}b$
(2 Marks)
(b)
find the probability distribution of $X$
(3 Marks)
(c)

Nav tries, a large number of times, to throw the ball into the cup from a distance of 100 cm.

He successfully gets the ball in the cup 30% of the time.

State, giving a reason, why Tisam’s model of this game is not suitable to describe Nav playing the game for all values of $X$

(3 Marks)

How to get feedback

  • 1 Take a clear photo of your handwritten work.
  • 2 Ensure all calculation steps are legible.
  • 3 Upload below for AI Tutor analysis.

Disclaimer: Tutor Sehaj is trained on exam-relevant data and mark schemes to provide reliable, keyword-based feedback.

Correct Result

(a)

$$b \times \frac{k}{50} = c \times \frac{k}{80}$$
$$\frac{b}{50} = \frac{c}{80} \implies c = \frac{80}{50}b \implies c = \frac{8}{5}b$$

(b) * $a = \boxed{\frac{2}{25}}$ (or $0.08$)

  • $b = \boxed{\frac{1}{5}}$ (or $0.20$)

  • $c = \boxed{\frac{8}{25}}$ (or $0.32$)

  • $d = \boxed{\frac{2}{5}}$ (or $0.40$)


(c) If $\text{P}(S \mid \{X = 100\}) = 0.3$, then $\frac{k}{100} = 0.3 \implies k = 30$.

This model would mean $\text{P}(S \mid \{X = 20\}) = \frac{30}{20} = 1.5$.

Since a probability cannot be greater than $1$, the model is not suitable.

Did you get this correct?

Step-by-Step

Solution for Part A

We are given two key assumptions from Tisam's model:

  1. $\text{P}(S \mid \{X = x\}) = \frac{k}{x}$

  2. $\text{P}(S \cap \{X = x\})$ is a constant value for all $x$. Let's call this constant $V$.

We know the general probability rule: $\text{P}(A \cap B) = \text{P}(A) \times \text{P}(B \mid A)$.

Applying this to our variables:

$$\text{P}(S \cap \{X = x\}) = \text{P}(X = x) \times \text{P}(S \mid \{X = x\})$$

Let's evaluate this for $x = 50$ and $x = 80$:

  • For $x = 50$: $\text{P}(S \cap \{X = 50\}) = b \times \frac{k}{50}$

  • For $x = 80$: $\text{P}(S \cap \{X = 80\}) = c \times \frac{k}{80}$

Since the intersection is constant, we can equate them:

$$b \times \frac{k}{50} = c \times \frac{k}{80}$$

Divide both sides by $k$ (since it's a constant):

$$\frac{b}{50} = \frac{c}{80}$$

Rearrange to solve for $c$:

$$c = \frac{80}{50}b$$
$$\fbox{$c = \frac{8}{5}b$}$$
Solution for Part B

First, we need to express all probabilities ($a$, $b$, $c$, and $d$) in terms of a single variable, like $b$. We already have $c = \frac{8}{5}b$. Now, do the same for $a$ and $d$.

  • For $x = 20$: $a \times \frac{k}{20} = b \times \frac{k}{50} \implies \frac{a}{20} = \frac{b}{50} \implies a = \frac{20}{50}b = \frac{2}{5}b$

  • For $x = 100$: $d \times \frac{k}{100} = b \times \frac{k}{50} \implies \frac{d}{100} = \frac{b}{50} \implies d = \frac{100}{50}b = 2b$

The sum of all probabilities in a distribution must equal $1$:

$$a + b + c + d = 1$$

Substitute the expressions we found:

$$\frac{2}{5}b + b + \frac{8}{5}b + 2b = 1$$

Combine the terms:

$$5b = 1 \implies b = \frac{1}{5}$$

Now calculate the actual values for $a$, $c$, and $d$:

  • $a = \frac{2}{5}(\frac{1}{5}) = \frac{2}{25}$

  • $c = \frac{8}{5}(\frac{1}{5}) = \frac{8}{25}$

  • $d = 2(\frac{1}{5}) = \frac{2}{5}$ (which is $\frac{10}{25}$)

Solution for Part C

Nav's experimental data shows that for $x = 100$, the probability of success is $30\%$, or $0.3$.

Using Tisam's model formula $\text{P}(S \mid \{X = x\}) = \frac{k}{x}$, we can find the implied value of $k$ for Nav:

$$\text{P}(S \mid \{X = 100\}) = 0.3$$
$$\frac{k}{100} = 0.3 \implies k = 30$$

If we apply this constant $k = 30$ to a different distance, say $x = 20$, the model breaks:

$$\text{P}(S \mid \{X = 20\}) = \frac{30}{20} = 1.5$$

Since a probability cannot be greater than $1$, this model is not suitable to describe Nav playing the game for all values of $X$.

Question 2: Normal Distribution (Year 2) (OCR-MEI)

The random variable $X$ represents the weight in kg of a randomly selected male dog of a particular breed. $X$ is Normally distributed with mean 30.7 and standard deviation 3.5.
(a)

Find

  • (i). $\text{P}(X < 30)$,

  • (ii). $\text{P}(25 < X < 35)$.

(3 Marks)
(b)
Five of these dogs are chosen at random. Find the probability that each of them weighs at least 30 kg.
(3 Marks)
(c)
The weights of females of the same breed of dog are Normally distributed with mean 26.8 kg. Given that 5% of female dogs of this breed weigh more than 30 kg, find the standard deviation of their weights.
(4 Marks)

How to get feedback

  • 1 Take a clear photo of your handwritten work.
  • 2 Ensure all calculation steps are legible.
  • 3 Upload below for AI Tutor analysis.

Disclaimer: Tutor Sehaj is trained on exam-relevant data and mark schemes to provide reliable, keyword-based feedback.

Correct Result

(a) (i) 0.421 (ii) 0.839

(b) 0.0640

(c) 1.95 kg

Did you get this correct?

Step-by-Step

Solution for Part A

(i) Find $\text{P}(X < 30)$

Let $X$ be the weight of a male dog. The distribution is given as:

$$X \sim \text{N}(30.7, 3.5^2)$$

Using the normal cumulative distribution function on a calculator (with $\mu = 30.7$ and $\sigma = 3.5$):

$$\text{P}(X < 30) = 0.42074...$$

$\approx 0.421$ (to 3 s.f.)

(ii) Find $\text{P}(25 < X < 35)$

Using the normal cumulative distribution function on a calculator (with lower bound 25 and upper bound 35):

$$\text{P}(25 < X < 35) = 0.83876...$$

$\approx 0.839$ (to 3 s.f.)

Solution for Part B

First, we need to find the probability that a single dog weighs at least 30 kg. We can use our answer from part A:

$$\text{P}(X \ge 30) = 1 - \text{P}(X < 30)$$
$$\text{P}(X \ge 30) = 1 - 0.42074... = 0.57925...$$

Since the five dogs are chosen at random, their weights are independent events. We multiply the probability for each of the 5 dogs:

$$\text{Probability} = (0.57925...)^5$$
$$\text{Probability} = 0.06399...$$

$\approx 0.0640$ (to 3 s.f.)

Solution for Part C

Let $Y$ be the weight of a female dog. We are given the mean $\mu = 26.8$, so:

$$Y \sim \text{N}(26.8, \sigma^2)$$

We are given that 5% weigh more than 30 kg, which means 95% weigh less than 30 kg:

$$\text{P}(Y > 30) = 0.05 \implies \text{P}(Y < 30) = 0.95$$

Using the inverse normal function on a calculator (with area = 0.95, $\mu = 0$, $\sigma = 1$), the corresponding $z$-value is 1.6449.

Now, use the standardization formula $z = \frac{x - \mu}{\sigma}$:

$$1.6449 = \frac{30 - 26.8}{\sigma}$$
$$1.6449\sigma = 3.2$$
$$\sigma = \frac{3.2}{1.6449} = 1.9454...$$

$\sigma \approx 1.95$ kg (to 3 s.f.)

Higher Questions

Question 1: Kinematics – Problems in Calculus

A particle $P$ is moving on the $x$ axis and its displacement from the origin, $x \text{ m}$, $t$ seconds after a given instant, is given by$$x = \frac{1}{3}t(t^2 - 3t - 24), \quad t \ge 0.$$Determine the displacement of $P$ when it is instantaneously at rest.
(5 Marks)

How to get feedback

  • 1 Take a clear photo of your handwritten work.
  • 2 Ensure all calculation steps are legible.
  • 3 Upload below for AI Tutor analysis.

Disclaimer: Tutor Sehaj is trained on exam-relevant data and mark schemes to provide reliable, keyword-based feedback.

Correct Result

Displacement when $P$ is instantaneously at rest$$\fbox{$x = -\frac{80}{3} \text{ m}$}$$(or approximately $-26.7 \text{ m}$)

Did you get this correct?

Step-by-Step

Step 1: Find the velocity equation
First, expand the equation for displacement to make it easier to differentiate: $$x = \frac{1}{3}(t^3 - 3t^2 - 24t)$$ Velocity $v$ is the derivative of displacement $x$ with respect to time $t$: $$v = \frac{\text{d}x}{\text{d}t} = \frac{1}{3}(3t^2 - 6t - 24)$$ $$v = t^2 - 2t - 8$$ Step 2: Find the time when the particle is at rest
The particle is instantaneously at rest when $v = 0$. $$t^2 - 2t - 8 = 0$$ $$(t + 2)(t - 4) = 0$$ This gives $t = -2$ or $t = 4$. Since $t \ge 0$, we reject $t = -2$. $$t = 4$$
Step 3: Calculate the displacement at this time
Substitute $t = 4$ back into the original displacement equation: $$x = \frac{1}{3}(4)((4)^2 - 3(4) - 24)$$ $$x = \frac{4}{3}(16 - 12 - 24)$$ $$x = \frac{4}{3}(-20)$$ $$\fbox{$x = -\frac{80}{3} \text{ m}$}$$ (Note: A decimal answer of approximately $-26.7 \text{ m}$ is also acceptable.)

Past Paper Questions Questions

Question 1: Kinematics – Constant Acceleration

[In this question, $\mathbf{i}$ and $\mathbf{j}$ are horizontal unit vectors and position vectors are given relative to a fixed origin $O$]

A particle $P$ is moving on a smooth horizontal plane.

The particle has constant acceleration $(2.4\mathbf{i} + \mathbf{j})\text{ ms}^{-2}$.

At time $t = 0$, $P$ passes through the point $A$.

At time $t = 5\text{ s}$, $P$ passes through the point $B$.

The velocity of $P$ as it passes through $A$ is $(-16\mathbf{i} - 3\mathbf{j})\text{ ms}^{-1}$.

(a)
Find the speed of $P$ as it passes through $B$.
(3 Marks)
(b)

The position vector of $A$ is $(44\mathbf{i} - 10\mathbf{j})\text{ m}$.

At time $t = T\text{ seconds}$, where $T > 5$, $P$ passes through the point $C$.

The position vector of $C$ is $(4\mathbf{i} + c\mathbf{j})\text{ m}$.

Find the value of $T$.

(3 Marks)
(c)
Find the value of $c$.
(3 Marks)

How to get feedback

  • 1 Take a clear photo of your handwritten work.
  • 2 Ensure all calculation steps are legible.
  • 3 Upload below for AI Tutor analysis.

Disclaimer: Tutor Sehaj is trained on exam-relevant data and mark schemes to provide reliable, keyword-based feedback.

Correct Result

(a)$$\fbox{$\text{Speed} = 2\sqrt{5} \approx 4.47\text{ ms}^{-1}$}$$(b)$$\fbox{T = 10}$$(c)$$\fbox{c = 10}$$

Did you get this correct?

Step-by-Step

Solution for Part A

Step 1: Identify the known vector quantities

We are given the initial velocity at point $A$, $\mathbf{u} = -16\mathbf{i} - 3\mathbf{j}$, the constant acceleration $\mathbf{a} = 2.4\mathbf{i} + \mathbf{j}$, and the time to reach point $B$, $t = 5\text{ s}$.

Step 2: Calculate the velocity vector at $B$

Using the vector equation $\mathbf{v} = \mathbf{u} + \mathbf{a}t$:

$$\mathbf{v} = (-16\mathbf{i} - 3\mathbf{j}) + (2.4\mathbf{i} + \mathbf{j})(5)$$
$$\mathbf{v} = -16\mathbf{i} - 3\mathbf{j} + 12\mathbf{i} + 5\mathbf{j}$$
$$\mathbf{v} = -4\mathbf{i} + 2\mathbf{j}$$

Step 3: Find the speed (magnitude of velocity)

Use Pythagoras' theorem on the velocity components:

$$\text{Speed} = |\mathbf{v}| = \sqrt{(-4)^2 + 2^2}$$
$$\text{Speed} = \sqrt{16 + 4} = \sqrt{20}$$
$$\fbox{$\text{Speed} = 2\sqrt{5} \approx 4.47\text{ ms}^{-1}$}$$
Solution for Part B

Step 1: Set up the position equation

The initial position vector at $t = 0$ is $\mathbf{r}_A = 44\mathbf{i} - 10\mathbf{j}$.

The position vector at time $T$ is $\mathbf{r}_C = 4\mathbf{i} + c\mathbf{j}$.

Using the displacement equation $\mathbf{r} = \mathbf{r}_0 + \mathbf{u}t + \frac{1}{2}\mathbf{a}t^2$:

$$4\mathbf{i} + c\mathbf{j} = (44\mathbf{i} - 10\mathbf{j}) + (-16\mathbf{i} - 3\mathbf{j})T + \frac{1}{2}(2.4\mathbf{i} + \mathbf{j})T^2$$

Step 2: Extract the $\mathbf{i}$ components to solve for $T$

Looking only at the coefficients of $\mathbf{i}$:

$$4 = 44 - 16T + \frac{1}{2}(2.4)T^2$$
$$4 = 44 - 16T + 1.2T^2$$

Step 3: Solve the quadratic equation

Rearrange the equation to equal zero:

$$1.2T^2 - 16T + 40 = 0$$

Divide the entire equation by $0.4$ (or use the quadratic formula directly) to get:

$$3T^2 - 40T + 100 = 0$$
$$(3T - 10)(T - 10) = 0$$

This gives two possible times: $T = \frac{10}{3}$ or $T = 10$.

Since the question states that $T > 5$, we reject the smaller value:

$$\fbox{$T = 10$}$$
Solution for Part C

Step 1: Extract the $\mathbf{j}$ components

Using the vector equation from part (b), look only at the coefficients of $\mathbf{j}$:

$$c = -10 - 3T + \frac{1}{2}(1)T^2$$

Step 2: Substitute $T = 10$

$$c = -10 - 3(10) + 0.5(10)^2$$
$$c = -10 - 30 + 0.5(100)$$
$$c = -40 + 50$$
$$\fbox{$c = 10$}$$

Question 2: Variable Acceleration – Using Displacement & Time Equation

A particle $P$ travels along a straight line through a point $O$ so that at time $t \text{ s}$ after passing through $O$ its displacement from $O$ is $x \text{ m}$, where: $$x = -15t^2 + 62t$$ Find:
(a)
The initial velocity of $P$.
(3 Marks)
(b)
The value of $t$ for which $P$ has zero acceleration.
(3 Marks)
Differentiate displacement to find velocity, then differentiate again to find acceleration.

How to get feedback

  • 1 Take a clear photo of your handwritten work.
  • 2 Ensure all calculation steps are legible.
  • 3 Upload below for AI Tutor analysis.

Disclaimer: Tutor Sehaj is trained on exam-relevant data and mark schemes to provide reliable, keyword-based feedback.

Correct Result

a) Initial velocity of $P$ $$v_{initial} = 62 \text{ m s}^{-1}$$ b) Value of $t$ for which $P$ has zero acceleration $$t = 5 \text{ s}$$

Did you get this correct?

Step-by-Step

Solution for Part A
Initial velocity $$v = \frac{dx}{dt} = 3t^2 - 30t + 62$$ At $t = 0$: $$\fbox{$v = 62 \text{ m s}^{-1}$}$$
Solution for Part B
Zero acceleration $$a = \frac{dv}{dt} = 6t - 30$$ Set $a = 0$: $$6t = 30$$ $$\fbox{$t = 5 \text{ s}$}$$

Continue Your Journey

Advanced curriculum recommendations.
